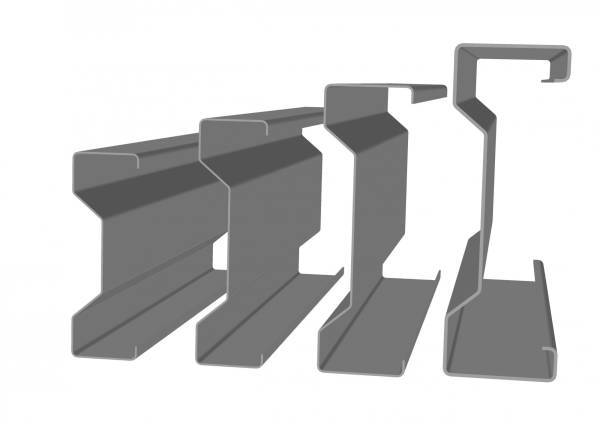

MULTIBEAM Wintzenheim 0

MULTIBEAM

The MULTIBEAM profile, which is the result of an intensive programme of tests, is compatible with the most recent design and construction techniques.
MULTIBEAM, optimised over 30 years of application in Europe, offers an unbeatable combination of simplicity and effectiveness.
The MULTIBEAM range is made with Sendzimir galvanised steel (275 gr/m² double-sided for general use and with a special coating for structures in coastal or aggressive environments, etc.).

Category:

Description

Profiles A,B,C,D

Profiles/Sections
(in mm)		 Height Flange Standard thickness Other thicknesses Centre distance Hole Ø
B120 120 56 1,5 / 80 14
B140 140 56 1,5 2 100 14
B170 170 56 1,5 2 130 14
B200 200 56 1,5 2 160 14
A140 140 70 1,5 2 100 14
A170 170 70 1,5 2 130 14
A200 200 70 1,5 2 160 14
A230 230 70 1,5 1,75/2/2,5 190 14
A260 260 70 1,5 1,75/2/2,5 220 14
C260 260 88 1,5 1,75/2/2,5/3,2 220 14
C300 300 88 1,5 1,75/2/2,5/3,2/4 260 14
C350 350 88 1,75 2/2,5/3,2/4 292 18
D400 400 105 1,75 2/2,5/3,2/4 342 18
D450 450 105 2 2,5/3,2/4 392 18
