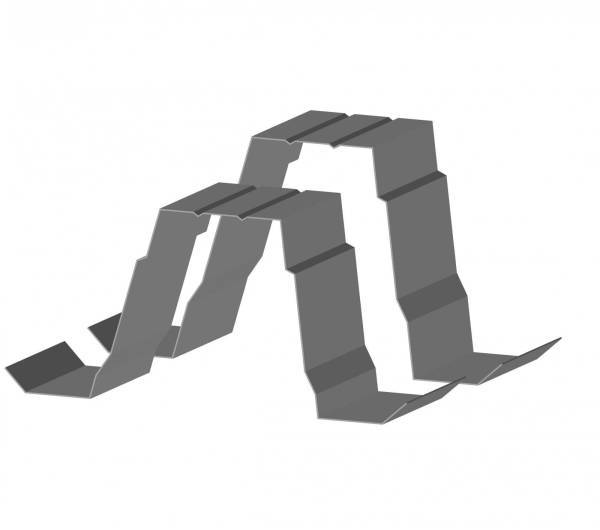

The PSB profile is used in the design of our solar structures as an East-West beam.
Thanks to its specific shape and mechanical properties, the PSB provides excellent stability to the structures.
The profiles are easily installed by slotting them together to provide total continuity and therefore the possibility of constructing extremely long structures.
PSB profiles can be used as support beams for North-South rails or to support photovoltaic panels directly thanks to their 75 mm width on the top.
Coated with Magnelis™ ZM310 or higher depending on the location of the solar project.
PSB is available in 4 heights: 120, 140, 160 and 180 mm and in thickness 0.9 and 1.2 mm.
| Type | PSB 120 |
PSB 120 |
PSB 140 |
PSB 140 |
PSB 160 |
PSB 160 |
PSB 180 |
PSB 180 |
|---|---|---|---|---|---|---|---|---|
| Thickness (mm) | 0,9 | 1,2 | 0,9 | 1,2 | 0,9 | 1,2 | 0,9 | 1,2 |
| Weight (daN/ml) | 3,03 | 4,08 | 3,3 | 4,45 | 3,58 | 4,82 | 3,85 | 5,19 |
